Description of Air Conveyor Systems:

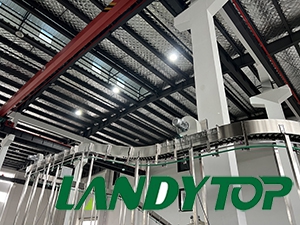

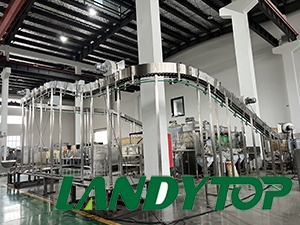

Air Conveyor Systems conveying line system is to use the wind energy of the fan as the conveying power, with the air storage bottle conveyor duct, to achieve the empty bottles produced from the blowing machine directly conveyed to the filling machine or labelling machine for filling or labelling.

Product Description:

Air Conveyor Systems is to use the wind energy of the fan as the conveying power, with the bottle conveyor duct of the wind storage, to achieve the empty bottles produced from the blowing machine are directly conveyed to the filling machine or labelling machine for filling or labelling.


1. Air Conveyor Systems is to use the wind energy of the fan as the conveying power, with the air duct for bottle conveying, to realise that the empty bottles produced from the blowing machine are directly conveyed to the filling machine or labeling machine for filling or labeling.

2.  Air Conveyor Systems air duct conveying line system consists of fan power device, straight air duct, turning air duct, up and down slope air duct, splitting and merging device, bottle dropping device, bottle clamping device and other structural components. Optional dust cover can be installed to strengthen the dustproof effect.

3. The main structural parts of the duct are made of 304 stainless steel, which can resist corrosion of various weak acids and alkalis. Duct card bottle strip for the ultra-high polymer polyethylene material, friction resistance, wear-resistant high strength, to ensure a long service life.

4. control cabinet, and the main electrical components using global brands of PLC, touch screen, inverter and photoelectric sensors.

5. It can effectively reduce the secondary pollution of empty bottles, save the turnover of empty bottles packaging costs and save labour costs. The system has the characteristics of energy saving, compact structure, beautiful appearance, easy control, easy to adjust, easy to clean, etc., in line with the hygiene requirements of the food, packaging industry, is an ideal bottle conveyor machinery and equipment.

Technical Parameters of Air Conveyor System:

Conveying capacity 1200-40000B/H
Applicable bottle 200-3000ml
Bottle diameter 50-120 mm
Conveying angel <15°
Air pressure 0.6 Mpa
Fan power 3Kw of each fan
Height 1340±50mm
