Description of Oral Liquid Production Line:
As an incorporated body of washing, drying and filling, this oral liquid production line is specially designed for washing, drying, filling, capping and sealing 10ml or 20ml linear glass bottles with easy open lids.

The main components of it are double screw bottle washing dryer and the filling capping device. And its machines should adopt box packaging, and container transport.

We have two types of oral liquid filling line for customers to choose: high speed oral liquid filling line and medium speed oral liquid filling line.

1. High Speed Oral Liquid Filling Line:
Our high speed oral liquid filling line adopts double screw for bottle feeding, pressure water for washing, and circulatory heat air for drying. And the filling and sealing machine has as many as 12 partial filling devices, and it sends caps by electromagnetic vibration.

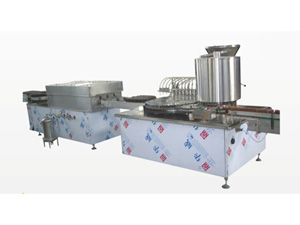

Our high speed oral liquid filling machine features advanced design and compact structure. More information about its appearance is showed in the P01.

Oral Liquid Production Line

Oral Liquid Production Line

2. Medium Speed Oral Liquid Filling Line:
This medium speed oral liquid filling line has much in common with the high speed oral liquid filling line. One of differences is that the filling and sealing machine of this filling line has 4 partial filling devices. And more things about its appearance can be found in the P02.

Features of Oral Liquid Production Line:
1. Our oral liquid filling machine has applied double screw for bottle feeding, pressure water for washing, circulatory heat air for drying, 12 partial filling devices for filling, electromagnetic vibration for bottle conveying, and more. In this way, all of its products enjoy high performance.
2. This filling line has good continuous control capacity, no leakage, and high filling speed.
3. This line is easy to assemble, and there is no need for special protection.
4. With many easily detachable components, the equipment is easy to maintain.

Note: During the installing and debugging time, much attention should be attached to the connection and coordination of the whole filling line.

Main Parameters of Oral Liquid Production Line:
Type High Speed Type Medium Speed Type
Production Capacity 7200-13000 bottle/hour 4000-6000 bottle/hour
Bottle Size 10ml (20ml) straight bottle 10ml (20ml) straight bottle
Drying Type straight air circulation straight air circulation
Drying Temperature 80~140℃ 80~140℃
Loading Accuracy ±1％ ±1％
Sealing Rate ≥99％ ≥99％
Consumption of Water 0. 7~1 m3/h 0. 5~0. 7 m3/h
Pressure 0. 25~0. 3Mpa 0. 25~0. 3Mpa
Water Consumption 0. 7~1 m3/h 0. 5~0. 7 m3/h
Pressure 0. 25~0. 3Mpa 0. 25~0. 3Mpa
Compressed Air Consumption 0. 6~0. 8 m3/min 0. 4~0. 5 m3/min
Pressure 0. 25~0. 3Mpa 0. 25~0. 3Mpa
Electric Supply 380V/50hz, 3phase 380V/50hz, 3phase
Power 20KW 15KW
Size 5700×1300×1750 mm 4000×1200×1650 mm

LANTYPC® is a professional manufacturer of oral liquid production line in China, and our equipment mainly consists of pharmaceutical machinery, food machinery and chemical machine, like GMP oral liquid filling line, syrup production line, cream filling and sealing machinery, linear filling equipment, drum bottle washer, pressure filtering pump unit, boil bottle sterilizing machinery, vial capper, horizontal adhesive labeling machine, transmission belt, alcohol filling line, jam filling and sealing machinery, bottle washing machine, and more. All of our products have received the CE certification and strictly conform to GMP standards, and they are quite popular among customers from Russia, Brazil, Argentina, Venezuela, Mexico, Ukraine, Belorussia, Kazakstan, Vietnam, Malaysia, Indonesia, Philippines, Thailand, Egypt and so forth. OEM and various training services are also available. If you’re interested in our oral liquid production line, please don’t hesitate to contact us.
